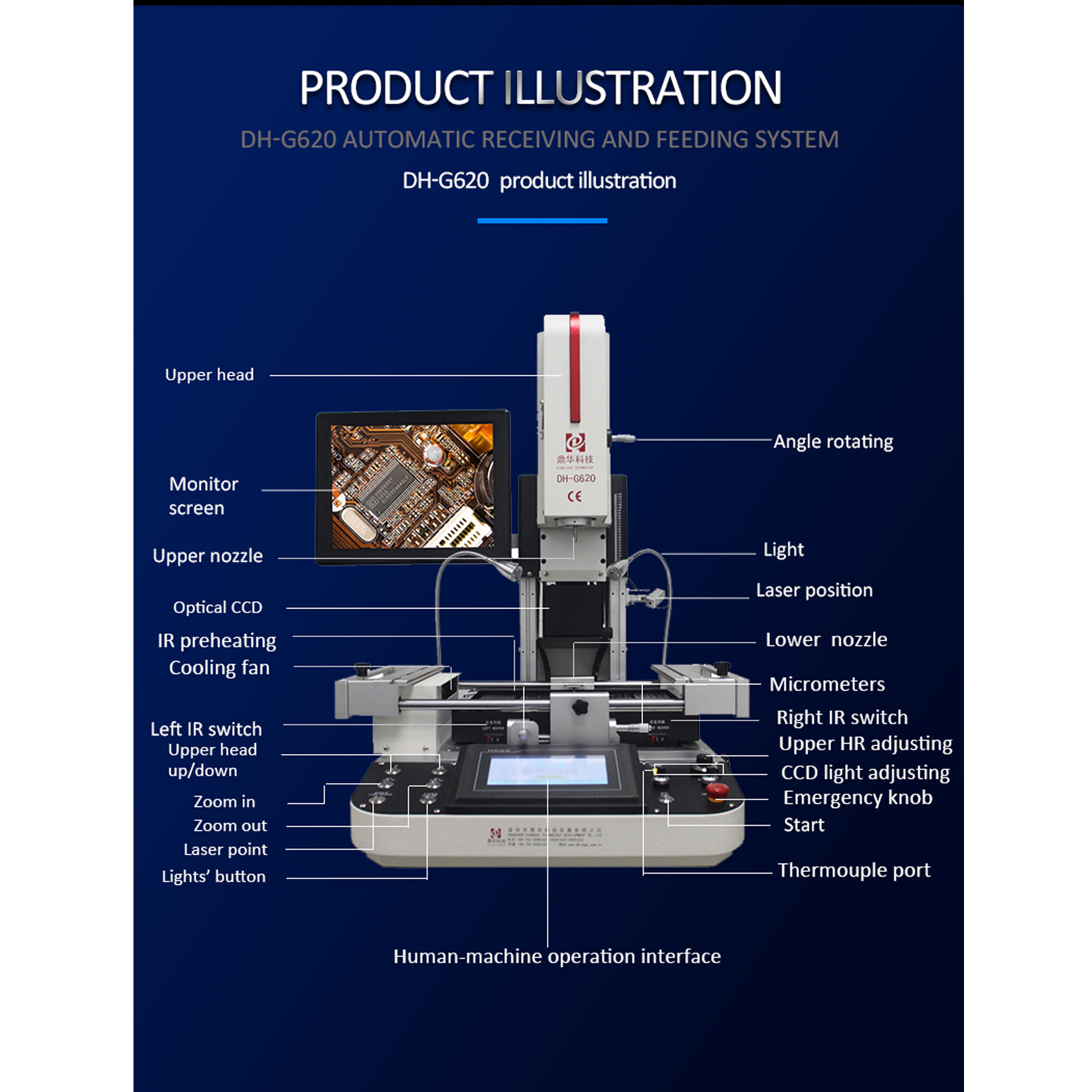

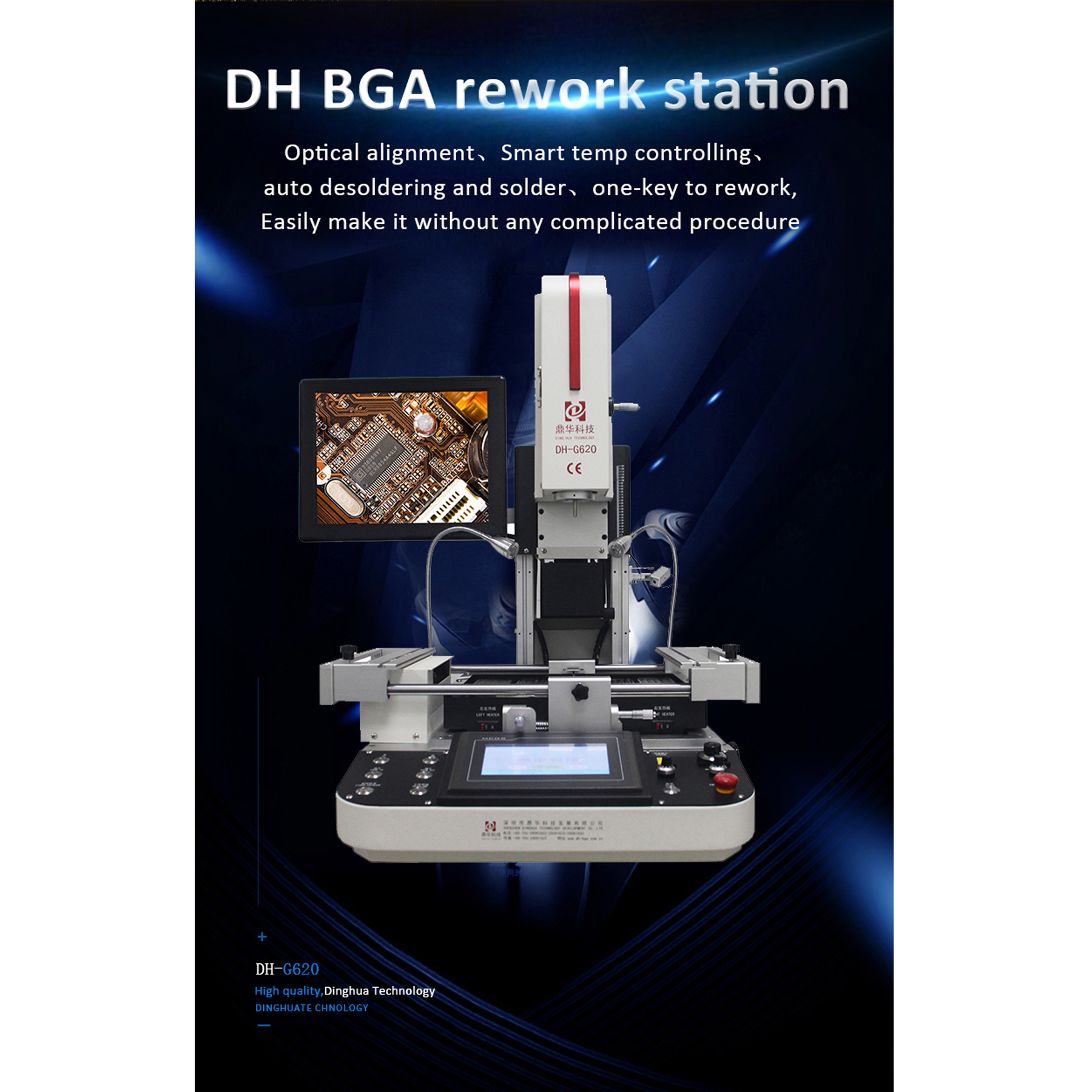

DESCRIPTION OF DH-G620 :
- Optical segment
- Smart Temperature Controlling
- Auto Desoldering And Solder
- One Key To Rework
- Easily Make It Without Any Complicated Procedure

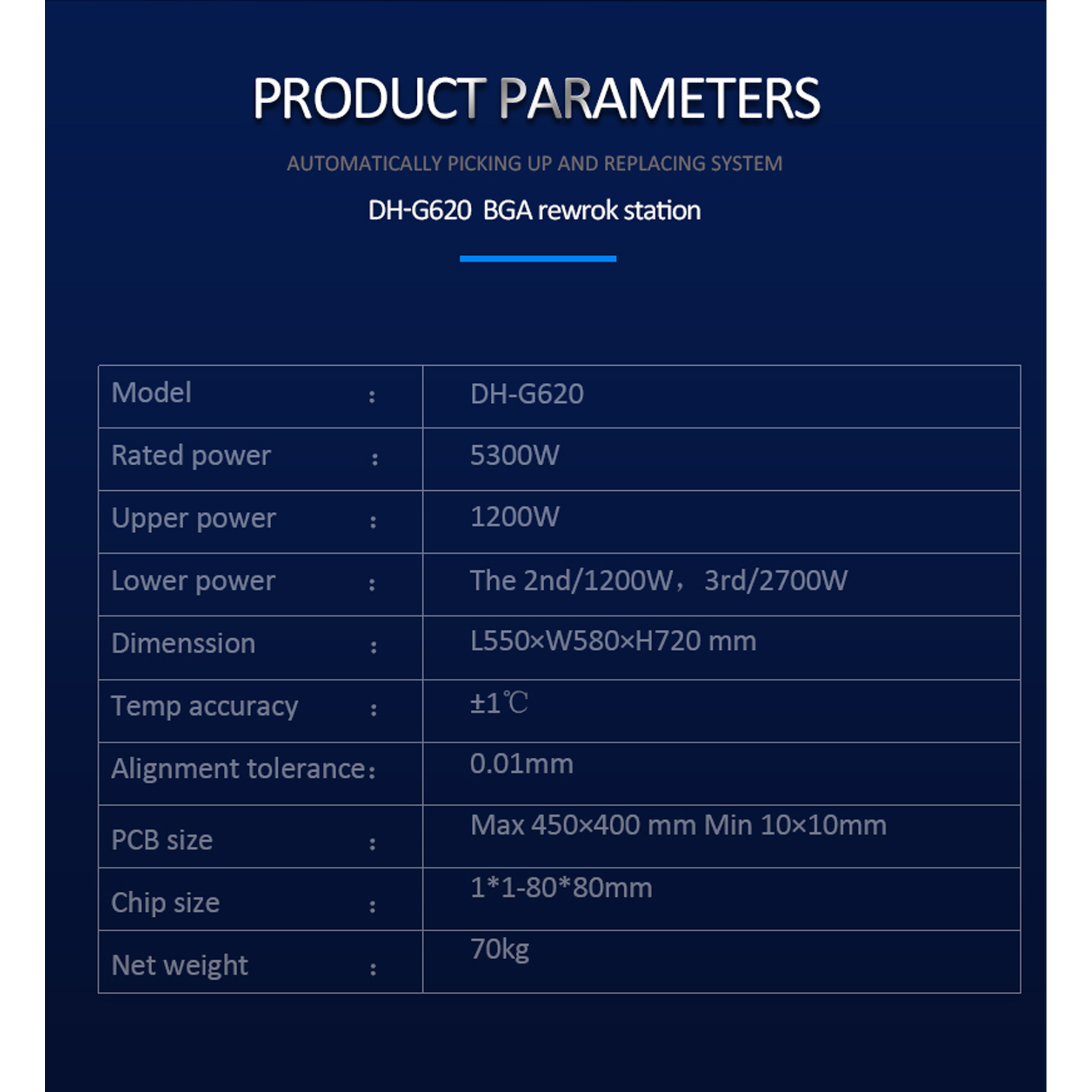

TECHNICAL SPECIFICATION OF DH-G620 :
- MODEL : DH-G620
- RATED POWER : 5300 W
- UPPER POWER : 1200 W
- DIMENSION : L550*W580*H720mm
- TEMP ACCURACY : 1 C
- ALIGNMENT TOLERENCE : 0.01mm
- PCB SIZE : Max450*400mm Min 10*10mm
- CHIP SIZE : 1*1-80*80 mm
- NET WEIGHT : 70Kg
