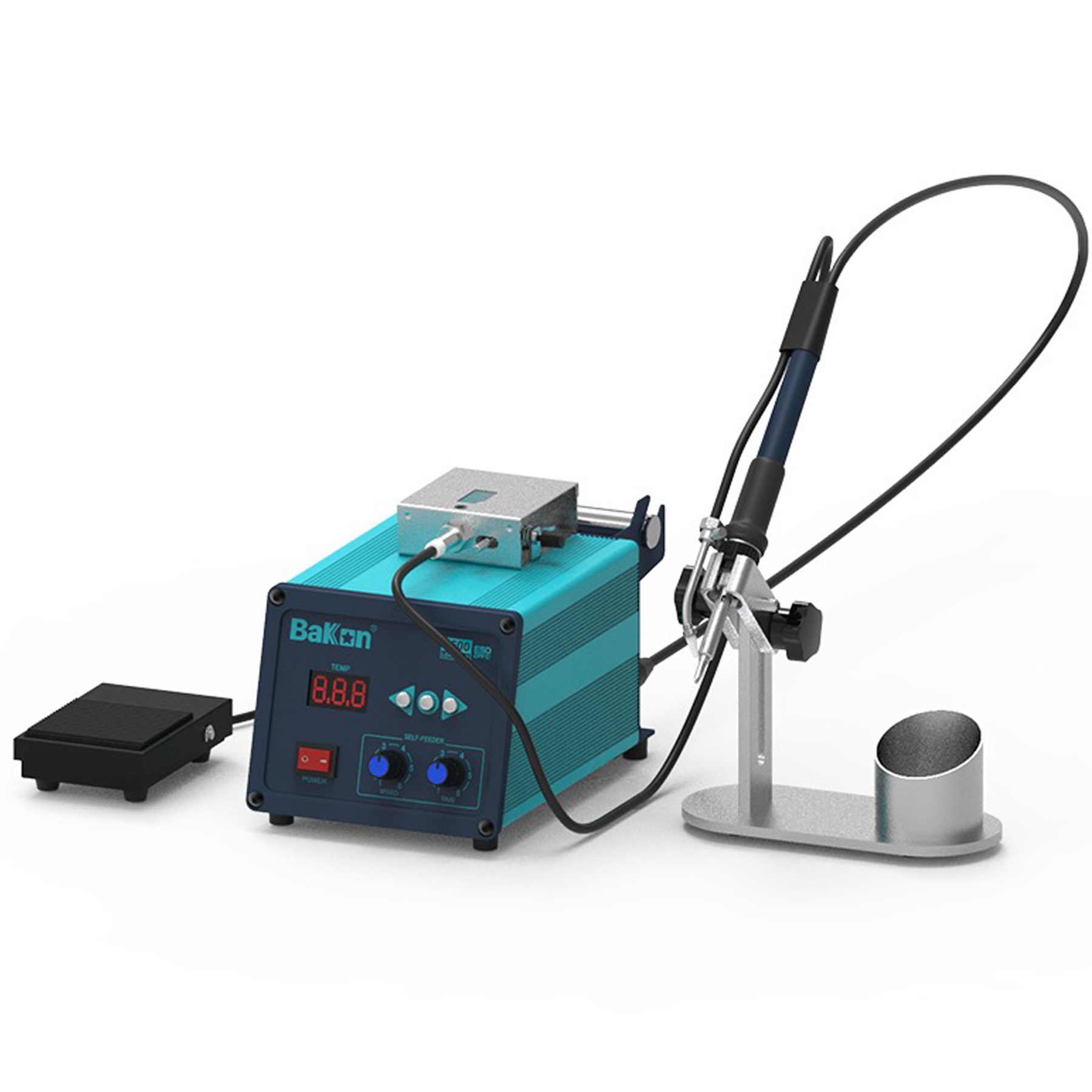

BK3500
DESCRIPTION OF BK-3500 :
- Three Position Digital Display, Easy To Read Out
- Silver Vortex Heating Element, Great Heat Conduction
- 120W Switching Power Supply, Super Thermal Recovery
- Ideal For Lead Free Soldering, High Mass Applications
- Automatic Sleep, Standby, Temperature Lockout Functions
TECHNICAL SPECIFICATION OF BK-3500 :
- Power consummation : 120W
- Input Voltage : AC220V 50HZ
- Temp Range : 200-480°C
- Tip resistance to the ground : ≤2Ω
- Tip to the ground potential : ≤2mV
- Stability : ±2 0C (at 25/45%)
- Feeding speed : 14mm/s~35mm/s
- Feeding volume (Auto mode) : 0.5~123mm
- Interval time : 0~3.5s
- Wire Dia. : 0.4~1.6
