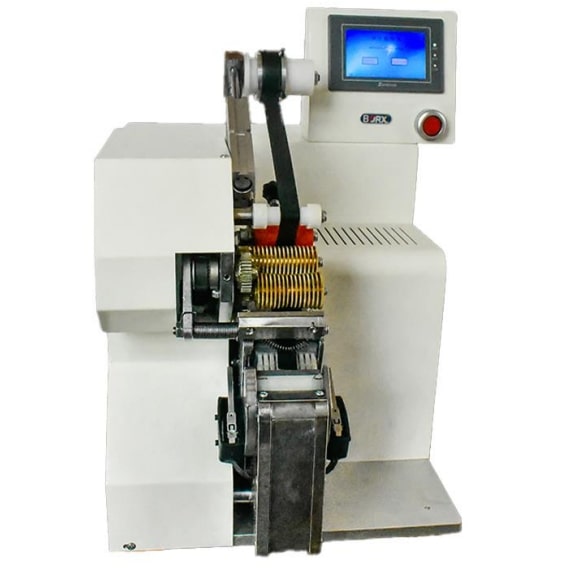

Automatic Tape Dotting Machine
Automatic Feeding winding cut-off. Can be wound with various steps.
DESCRIPTION
- Touch Screen Operations : The intelligent touch screen adjusts the PLC control operation in Chinese and English, which is easy to learn.

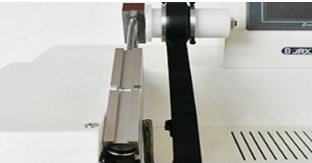

- Adhesive tape retention mechanism : Suitable for various types of tape tape, the feeding is flat, wrinkle-free, stable and efficient, providing automation for the forming, placement and winding of complex wire harnesses, and improving the efficiency of the production line.

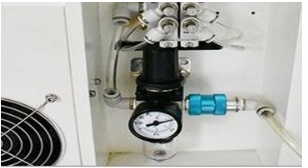

- Solenoid filter valve : The use of high-quality electromagnetic filter valve to control the air source to improve the service life, so that the performance of the tape winding machine is more stable and efficient.

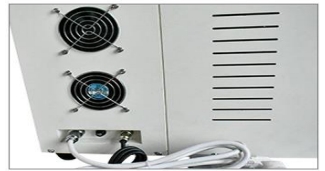

- Cooling fan : The machine is equipped with two hot fans inside, which quickly exhausts heat, making the machine durable and efficient .

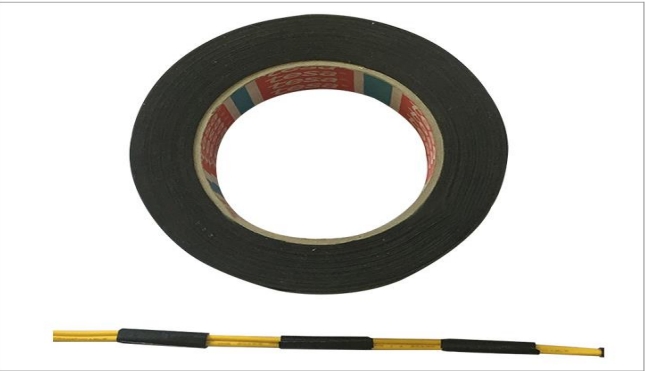

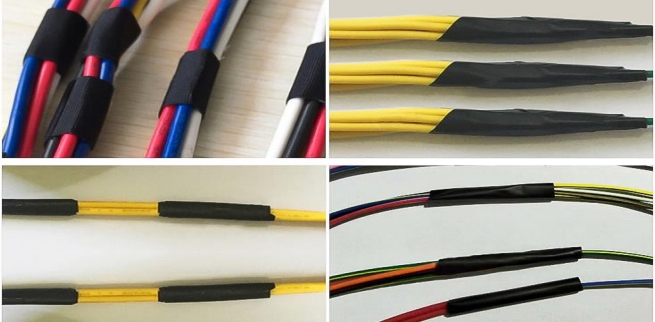

Winding Effect : Suitable for step velvet tape , acetate tape , electrical tape , poyester tape. Intelligent CNC wire harness winding quality is good , suitable for all kinds of tape point winding.
Product Parameters :
- Product : Automatic dispensing tape machine
- Product size : size 480*350*530
- Tape length : 55~100mm
- Tape width: 2-40mm (Customizable)
- Adhesive tape is applicable : PVC/Buckyflannel,etc
- Product packaging : Foam carton/wooden frame wooden box
- Product Warranty : One year warranty
- Product power supply : AC220V 50/60HZ
- Product power : 500W
- Suitable wire diameter : 1~15mm
- Winding length : 0-600mm/s
- Product air pressure : 0.5-0.6Mpa
- Product net weight : 50KG
- Product customization : In the tank
