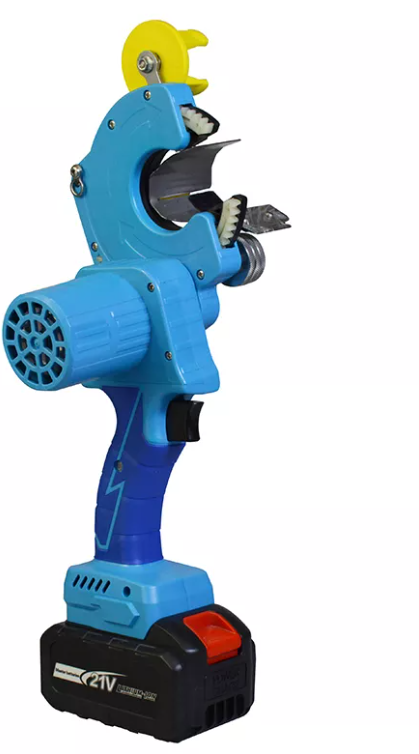

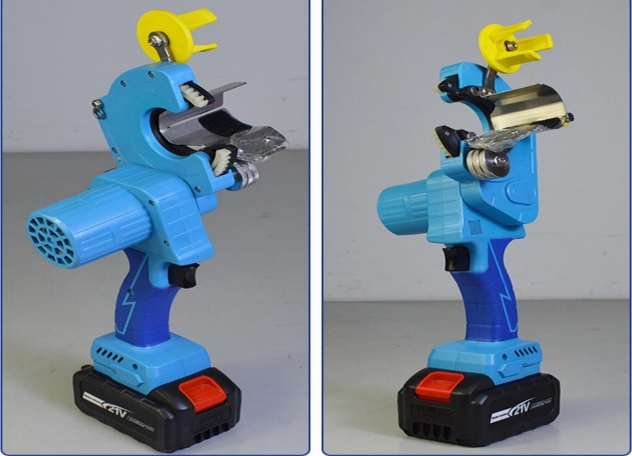

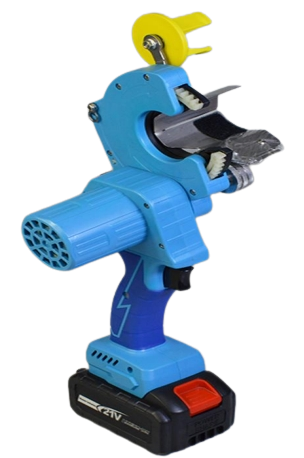

Handheld Tape Winding Machine

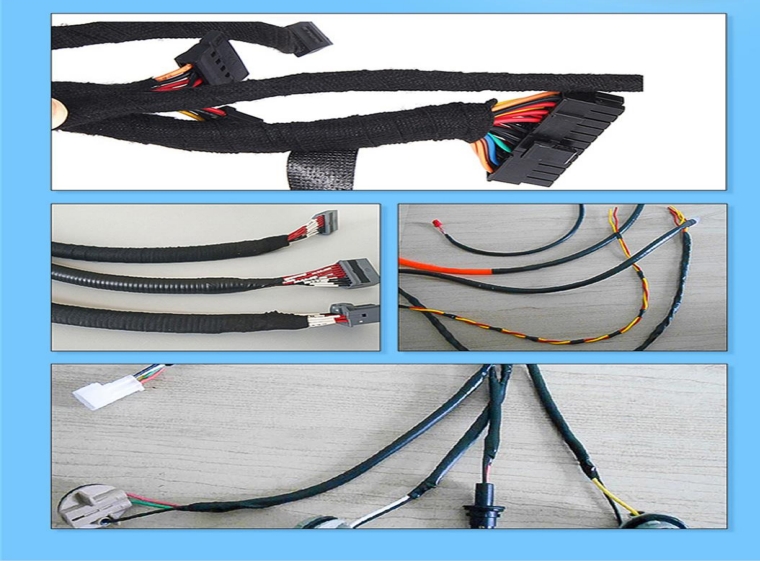

Speed can be adjusted , Portable charging , Wide range of applications , Easy to use , It is suitable for all kinds of tape point winding, and the tape wrapping work after the middle point is crimped. It wraps the tape around the cable periphery, which plays the role of fixation and insulation, and improves the work of efficiency o enterprise. the
DESCRIPTION

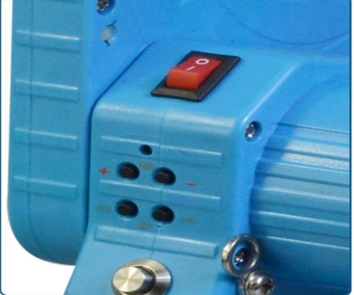

Left plus right minus Adjust as needed
- Lithium battery version with bound taping machine, through the use of button operation way for efficient winding package plastic wire harness.

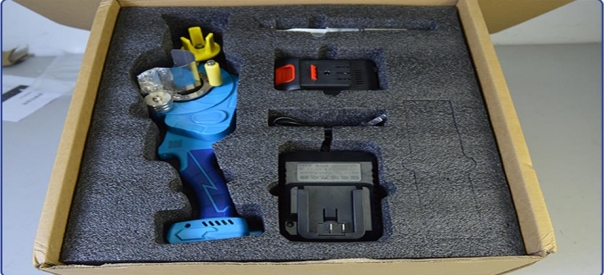

- One machine, one kind is used alone after charging, convenient in different field change, the other is a desktop fixed base, plug wire is used.
- Design and dynamic design accord with human body engineering, independent use into configuration belt hang on belt, effectively ease the operator work in the long process of fatigue.
- Adjustable speed, the machine has five gear, 120 speed for 1 minute, can be used according to different requirements set speed.
- High adhesive process is smooth, beautiful appearance is flat and level.
- Machine hidden blade device and emergency braking device, ensure the safety of the operation.
Tape machine (without battery)
- weight: 1KG
- size: 250*300*280mm
Battery (without tape machine)
- size: 6000mh 10-21V-4.0A
- weight: 0.6KG
Winding speed
- 1: 150 rpm
- 2: 200 rpm
- 3: 350 rpm
- 4:500 rpm
Adhesive tape
- width: 10-25MM
- outer diameter: <110MM
- inner circle: 38mm
- type : PVC Nylon Bucky
Winding Diameter
- 3MM - 35MM
