Automatic Wire Winding Machine With Counting Function
Automatic meter winding machine
Features:
- Cut off
- Meter/tie
- Winding/rank
- Adjustable speed
- Adjustable circle diameter
- PLC program control: Arbitrarily set the number of windings and the length of the wire.
- Stepper motor: High-speed rotating speed is electric driven, high efficiency
- Touch screen panel: Intuitive and convenient to set the number of times, simple and 9
- Convenient operation: Imported steel. Anti-rust material, long life, imported steel material, strong and sturdy.
- Imported steel: Anti-rust material, long life, imported steel material, strong and sturdy.
PLC program control
Arbitrarily set the number of windings and the length of the wire.

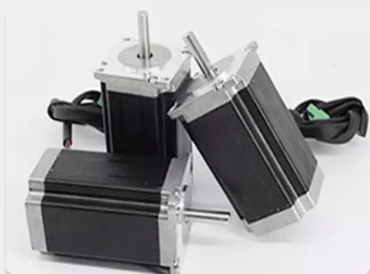

Stepper motor
High-speed rotating speed is electric driven, high effi- ciency

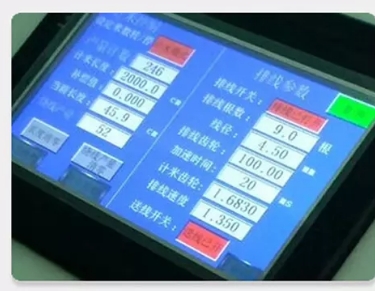

Touch screen panel
Intuitive and convenient to set the number of times, simple and convenient operation.
Imported steel
Anti-rust material, long life, imported steel material, strong and sturdy.
| Model | Desktop type meter winding machine | |
| Winding speed |
|
|
| Bundle diameter |
|
|
| Outer diameter of circle | Non-standard type (Can be customized) |
|
| Rated power | <200W | |
| Input voltage | AC220V 50/60HZ (Special can be customized) |
|
| Winding error | ?25 mm | |
| Equipment efficiency |
|
|
| Weight | About 40KG | |
| Model |
|
|
| Winding speed | 1-10 laps per second | |
| Bundle diameter |
|
|
| Outer diameter of circle | Non-standard type (Can be customized) |
|
| Rated power | <200W | |
| Input voltage | AC220V 50/60HZ (Special can be customized) |
|
| Winding error | ?25 mm | |
| Equipment efficiency | Three strips per minute for 10 meters (without cable tie) |
|
| Weight | About 45KG | |
| Equipment tie | Rubberized iron core | |

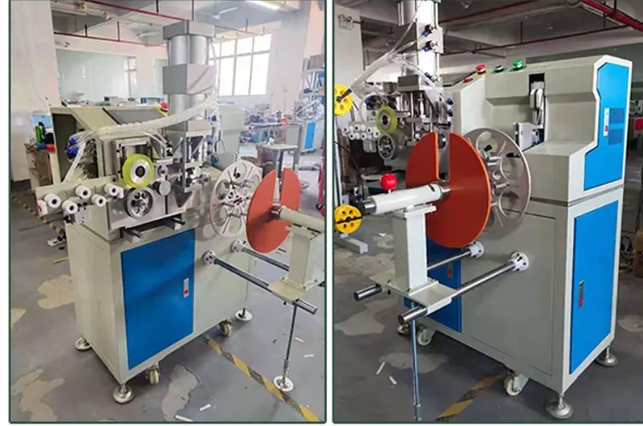

| Model | Floor type meter winding machine | |
| Winding speed |
|
|
| Inner diameter of winding | 50-280 mm | |
| Outer diameter of circle | 350 mm | |
| Rated power | <2500W | |
| Input voltage | AC220V 50/60HZ (Special can be customized) |
|
| Winding error |
|
|
| Winding load |
|
|
| Winding speed | 1-10 laps per second | |
| Inner diameter of winding | 50-280 mm | |
| Outer diameter of circle |
|
|
| Rated power |
|
|
| Input voltage | AC220V 50/60HZ (Special can be customized) |
|
| Winding error | ?25MM | |
| Winding load | <2.5KG | |
| Equipment efficiency | Three strips per minute for 10 meters (without cable tie) |
|
| Equipment tie | Rubberized iron core |
