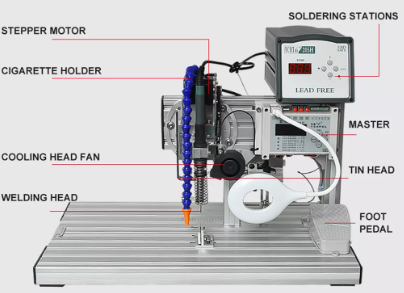

Semi-automatic Wire Soldering Machine
Semi Automatic Usb Wire Soldering Machine
Features:
- Full solder joints
- Uniform tin velocity
- Stable performance
- High efficiency soldering
- Heat up fast
- High efficiency
- Labor saving
- Automatic smoke exhaust: Automatic smoke exhaust function, workers will not smoke eyes when working

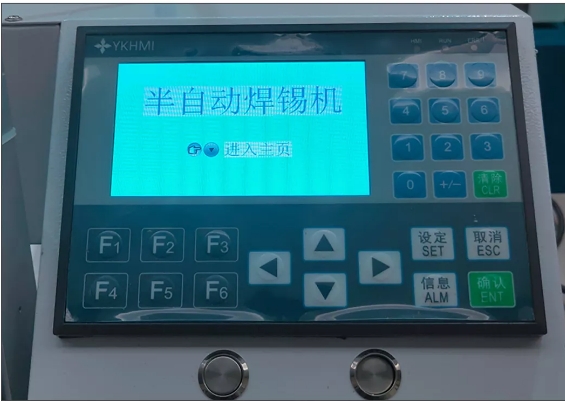

- Panel control: Simplicity of operator
Function introduction:
- Temperature controlled: Temperature can be adjusted according to work requirements.
- Automatically return tin: Tin back function can reduce the waste of tin.
- Controllable tin output speed: Adjust the tin-out speed as required, easy to operate
- Tin output is controllable: The amount of tin can be adjusted according to the size of the solder joint.
Application:

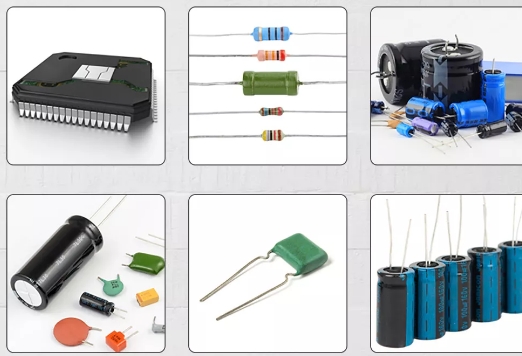

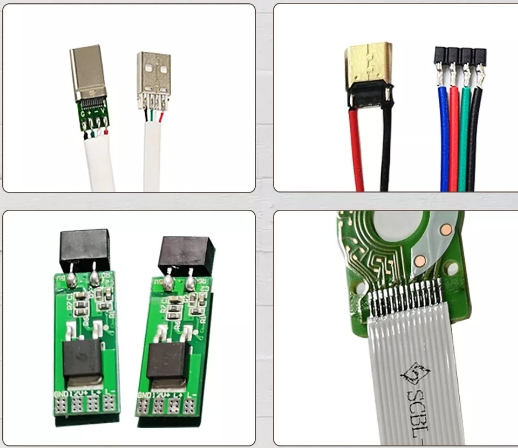

This product is widely used in electronic components switch motor, USB connector,PCB board,lamp board,transistor, NTC Connector , wire enameled wire and other soldering operations.
| Model | 1 |
| Name | Manual type usb cable soldering machine |
| Function | USB, MINI5PIN, MICRO5PIN auto tin welding |
| Power supply | Single phase AC 220V 10A 50Hz |
| Type | Manual type |
| Control mode | constant temperature |
| Voltage | 220V |
| Applicable cables | 28*1P+28*2C, 28*1P+24*2C |
| 28*1P+26*2C, 28*1P+22*2C | |
| 28*1P+20*2C | |
| Working pressure | 0.5Mpa |
| Measurement | 40*40*30(mm) |
| Gross Weight | about 30kg |
